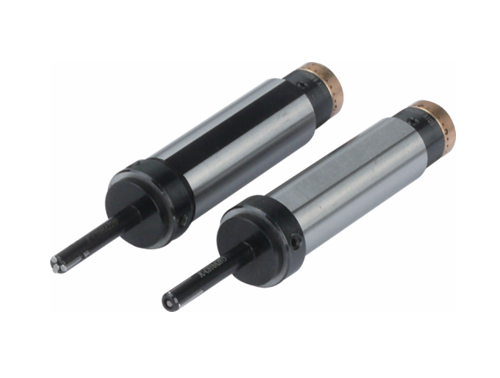

JC-CS Roller burnishing tool for CNC machine
Characteristic
The tool adjustment hide in the shank, and the shank size can be customized according to CNC machine.It is more suitable for machine tools with small space.It is generally used in CNC machine..

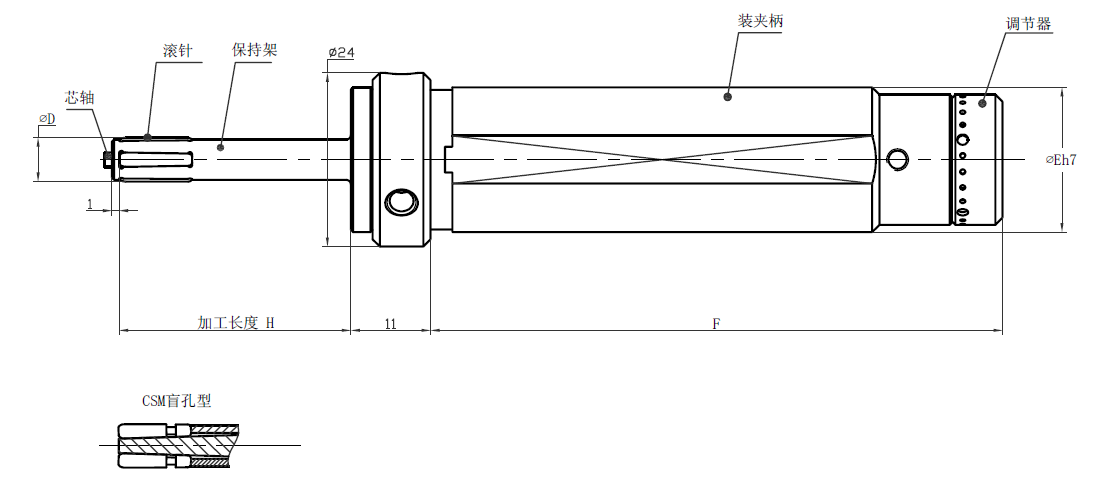

Product Data
| Model | Adjustment Range | Effective Length/H | Shank | |||
| ΦD | A | B | Shank SizeΦE | F | ||
|
Φ3-Φ5 （Throught Hole） |
-0.05/+0.15 |
30 | 50 |
19.05 20 22 25 |
80 - 120 |
|
| Φ6-Φ14 | ||||||
